Forms are not loading in Alfresco Activiti BPMN editor

swathirajan
Champ in-the-making
Champ in-the-making
Hi,

I created a medium complexity BPMN workflow in Alfresco activiti web application. When i tried to specify the flow condition for 'Exclusive Gateway', the forms created by me arent loading. I used two type of forms such as reusable forms as well as inline forms. But, both are not loading while describing flow condition. Out of five forms, only two are populated for flow condition.
Kindly help me to get all the forms populated.
Is there any workaround?
20 REPLIES 20

jbarrez
Star Contributor
Star Contributor
I'm not following 100% here. Where are you specifying the conditions? On the sequence flow?
Which forms are showing?

Typically, you only should see the 'inline' forms of the process model and the general reusable forms.

swathirajan
Champ in-the-making
Champ in-the-making
Hi Jbarrez,

Yes, I tried to specify the conditions on the sequence flow of 'Exclusive Gateway'.
I tried to use both inline forms and reusable forms.
Out of 5 forms that i added as reusable forms, only two forms are getting populated in the 'form field'/ 'form output'.
Even for inline forms too, the forms were not populated in the 'form field'/ 'form output'.

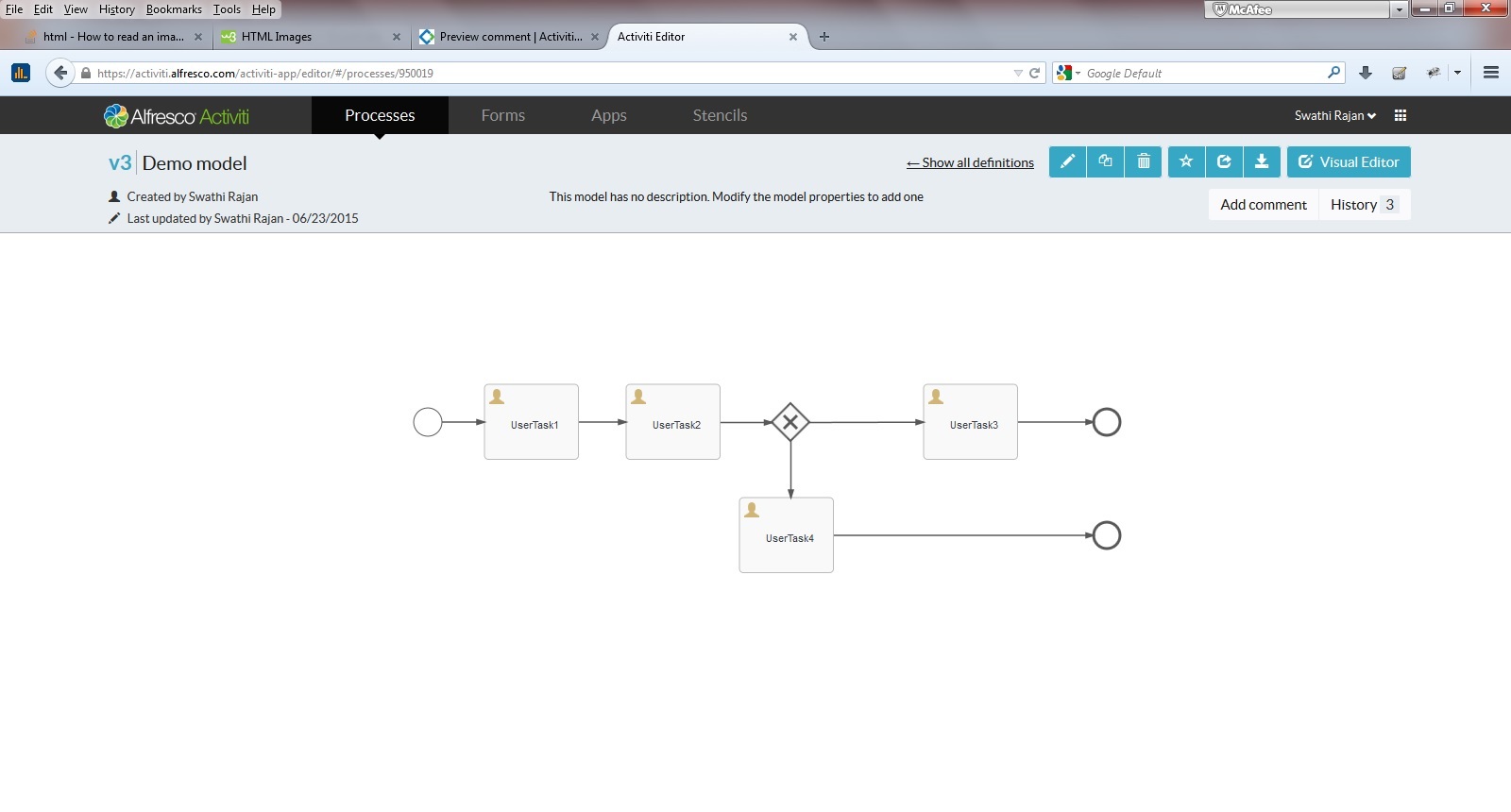

[img]http://3.bp.blogspot.com/-zyes9jVTVFo/VZZpAKeVFNI/AAAAAAAAAN8/bNNfGIWG168/s1600/workflow.jpg[/img]

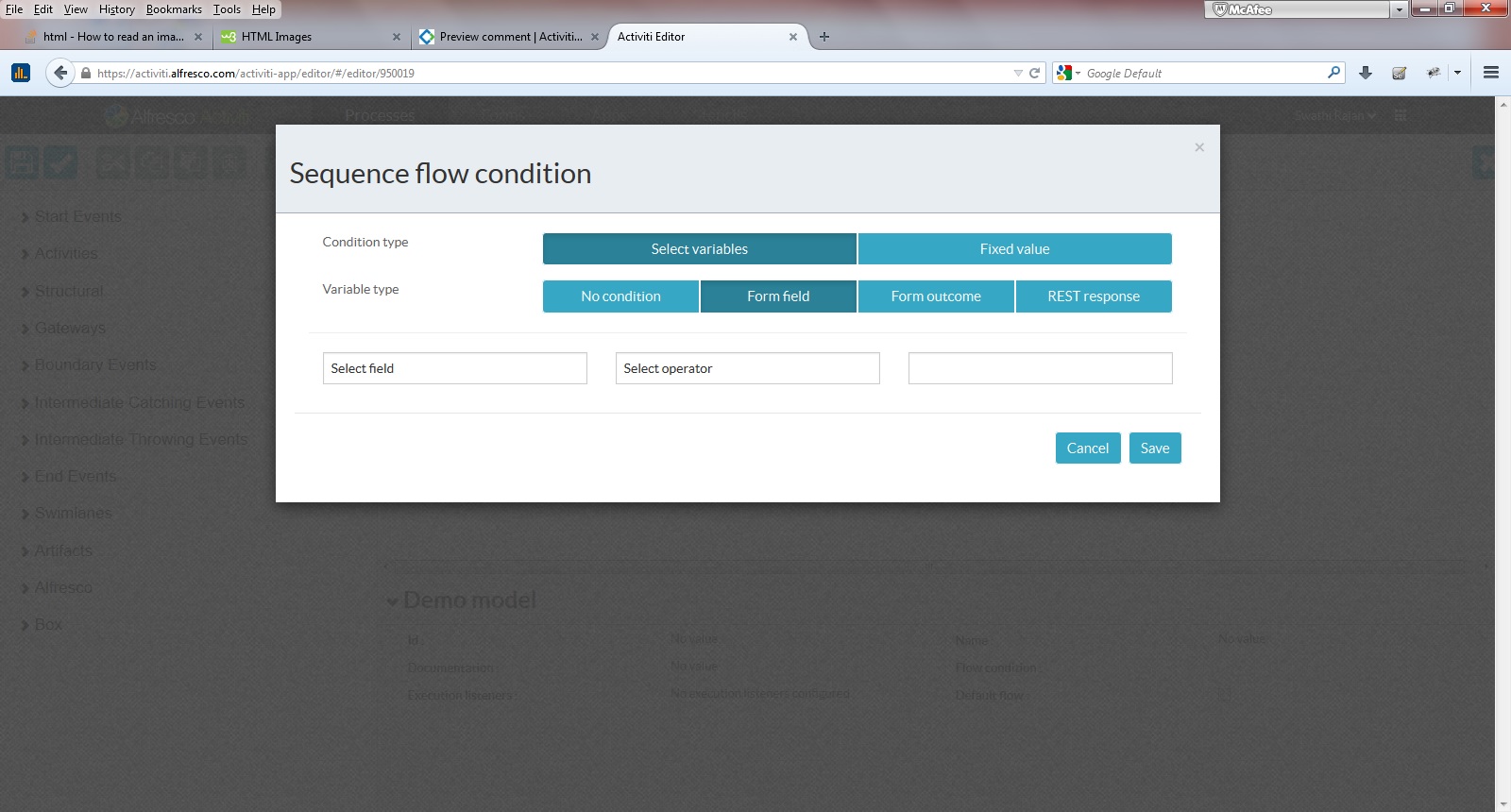

[img]http://2.bp.blogspot.com/-o-qbro8yNeM/VZZtFo8NJlI/AAAAAAAAAOM/uHoJpTHS_EU/s1600/SequenceFlow.jpg[/img]
Kindly let me know is there any workaround for getting  all the forms?

jbarrez
Star Contributor
Star Contributor
Okay, very odd. Could you also show those 5 forms with a screenshot?

Could you create an app with that process and export it (as a zip) and attach here?

swathirajan
Champ in-the-making
Champ in-the-making

vasile_dirla
Star Contributor
Star Contributor
Hi Rajan,
do you see any errors in the browser's console ?

swathirajan
Champ in-the-making
Champ in-the-making
I have attached app zipped folder in the below link:
https://drive.google.com/file/d/0BxNY8JusUN2ASmxTOXVUOEJyS1k/view?usp=sharing

swathirajan
Champ in-the-making
Champ in-the-making
Hi dirla,

No i did not get any errors in the browser console.

jbarrez
Star Contributor
Star Contributor
I've been looking into your model, but the process model is missing sequence flow between many steps. The zip also only contains one form.
Did you import this process from somwhere else (I see you're using Activiti Cloud)? How did you create this model, cause the errors I'm seeing make very little sense …

swathirajan
Champ in-the-making
Champ in-the-making
Thats odd.. The model that i shared is same as the one in screenshot attached in previous posts. I imported the same model only.
If there are errors in the model, the system wont allow the user to deploy it. Hence i validated the model and no errors i could see.

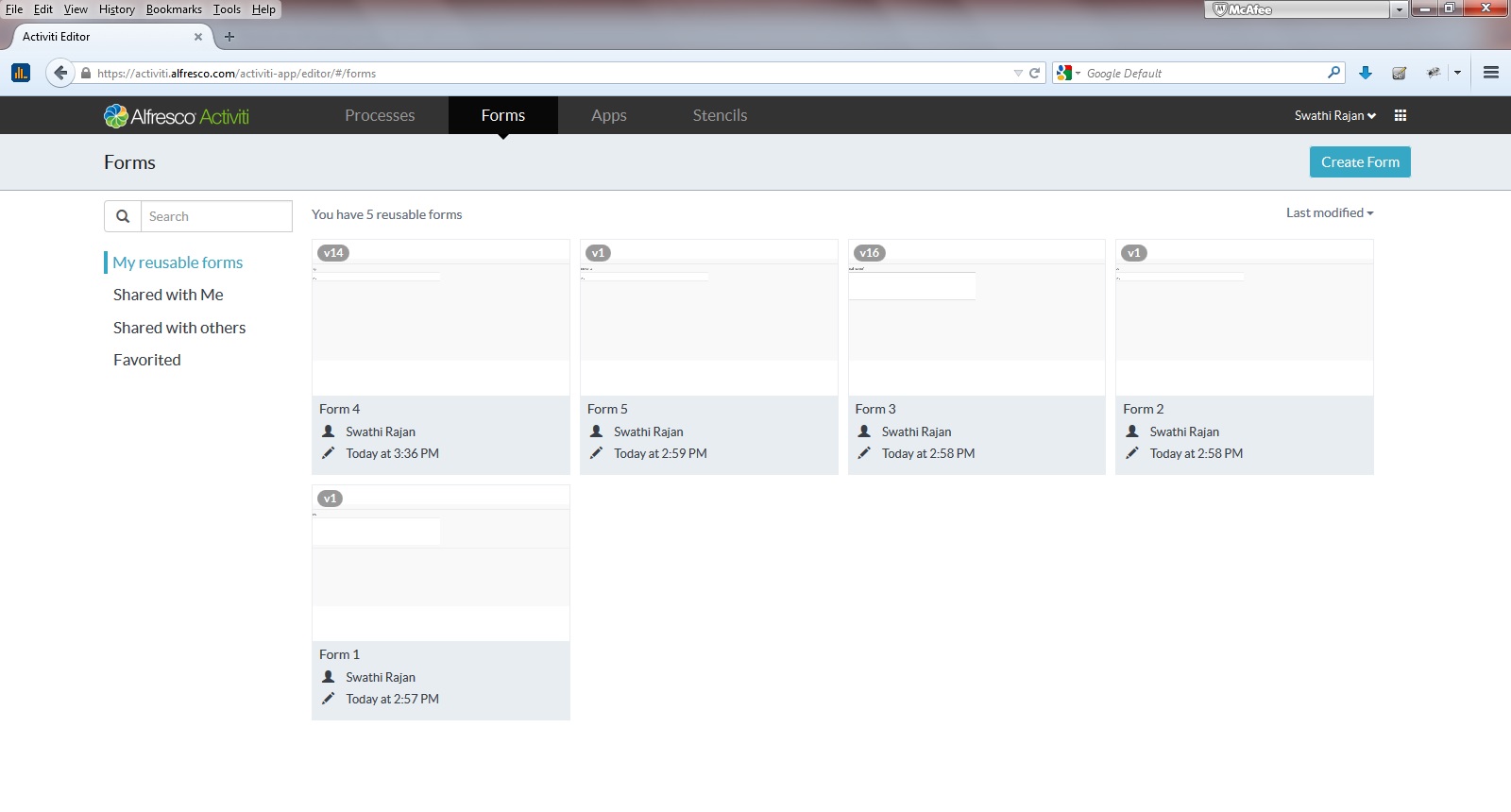

I have provided the screenshot in previous post , for the forms that I use.
