Hi all,
we also want to add this functionality to our project. Our use case is to retry a failed service task without restarting the whole workflow. Moreover this functionality shall be accessible via a REST call.
I've made some research and found that this feature has already been asked quite a few time.
How to implement restart/pause/resume in Activiti
The last link gives some unit test and code for a 'RestartInstanceActivitiCommand'. However I'm not able to integrate it to our use case.

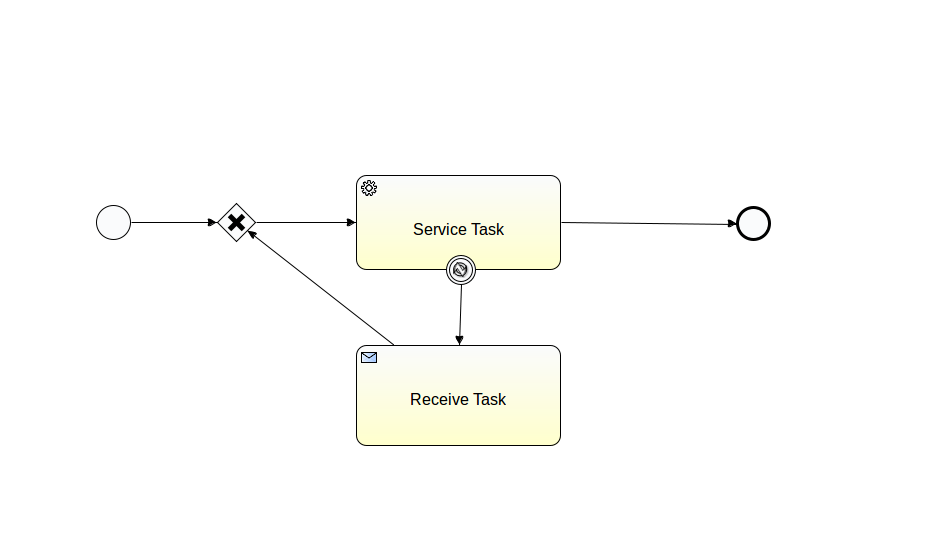

The current solution I'm investigating is by using an error boundary event to catch the service task failure. This error boundary event is linked to a receive task waiting for a signal to restart the service task, as the following figure illustrate :
This diagram work well, as we are able to successfully retry the service task when it fail, but the workflow does not seems to reach the end event when the service task is finally successful. The process instance isn't ended.
Any hint or advice for another strategy in order to implement this feature will be greatly appreciated.
Best Regards.
Hi Sylvain,
I've tried your pattern in my sandbox and was successfully able to reach the end of the instance.
-------------------------------------------------------
T E S T S
-------------------------------------------------------
Running org.activiti.designer.test.PaymentProcessTest
Dec 16, 2016 2:05:40 PM org.springframework.beans.factory.xml.XmlBeanDefinitionReader loadBeanDefinitions
INFO: Loading XML bean definitions from class path resource [activiti.cfg.xml]
Dec 16, 2016 2:05:43 PM org.activiti.engine.impl.db.DbSqlSession executeSchemaResource
INFO: performing create on engine with resource org/activiti/db/create/activiti.h2.create.engine.sql
Dec 16, 2016 2:05:43 PM org.activiti.engine.impl.db.DbSqlSession executeSchemaResource
INFO: performing create on history with resource org/activiti/db/create/activiti.h2.create.history.sql
Dec 16, 2016 2:05:43 PM org.activiti.engine.impl.db.DbSqlSession executeSchemaResource
INFO: performing create on identity with resource org/activiti/db/create/activiti.h2.create.identity.sql
Dec 16, 2016 2:05:43 PM org.activiti.engine.impl.ProcessEngineImpl <init>
INFO: ProcessEngine default created
Dec 16, 2016 2:05:43 PM org.activiti.engine.impl.bpmn.deployer.BpmnDeployer deploy
INFO: Processing resource paymentProcess.bpmn20.xml
Dec 16, 2016 2:05:50 PM java.util.logging.LogManager$RootLogger log
INFO: Execute validate service task for execution id 12
Dec 16, 2016 2:05:50 PM java.util.logging.LogManager$RootLogger log
INFO: received isbn
Dec 16, 2016 2:05:50 PM java.util.logging.LogManager$RootLogger log
SEVERE: There is BPMN exception here. Error is: org.activiti.engine.delegate.BpmnError: (errorCode='isbnisblank')
id 5 paymentProcess:1:4
Dec 16, 2016 2:05:50 PM java.util.logging.LogManager$RootLogger log
INFO: Process instance started: id: 5 paymentProcess:1:4
Dec 16, 2016 2:05:50 PM java.util.logging.LogManager$RootLogger log
INFO: Process execution: id: 5 and current activity id= null
Dec 16, 2016 2:05:50 PM java.util.logging.LogManager$RootLogger log
INFO: Process execution: id: 9 and current activity id= receivetask1
Dec 16, 2016 2:05:50 PM java.util.logging.LogManager$RootLogger log
INFO: Target execution id:9
Dec 16, 2016 2:05:50 PM java.util.logging.LogManager$RootLogger log
INFO: Execute validate service task for execution id 17
Dec 16, 2016 2:05:50 PM java.util.logging.LogManager$RootLogger log
INFO: received isbn 456
Dec 16, 2016 2:05:50 PM java.util.logging.LogManager$RootLogger log
INFO: Running processes: 0
Tests run: 1, Failures: 0, Errors: 0, Skipped: 0, Time elapsed: 10.993 sec
Results :
Tests run: 1, Failures: 0, Errors: 0, Skipped: 0
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 13.403s
[INFO] Finished at: Fri Dec 16 14:05:50 ICT 2016
[INFO] Final Memory: 10M/167M
[INFO] ------------------------------------------------------------------------
So the unit test execution is as follows:
1. Start the instance with 'isbn' variable blank
2. Instance gets to Service Task 'Validate" which is defined in a Java class, which will do some validation logic
3. Service task will fail on purpose and throw a BPMNError exception
4. Error intermediate event will catch the exception and flow to 'Wait' receive task
5. Update the business logic so next time the service task 'validation' is executed, no error should be thrown
6. Signal the flow to continue
7. Successfully end process instance
So this proves that your model should be working fine. You said then the service task was passed successfully but the instance wasn't ended. Could you debug where was the process execution at that point. You can double check the execution by running a query such as follows:
executions = runtimeService.createExecutionQuery()
.processInstanceId(processInstance.getId())
.list();
for (Execution execution : executions) {
rootLogger.info("Process execution: " + " id: " + execution.getId() + " and current activity id= "
+ execution.getActivityId());
}
Thanks,
Thong Huynh
